Power Factor Chart & Heatmap
The Power Factor Bar Chart and Power Factor Heatmap are 2 separate graphic elements, that work together to provide a insightful view on your Power Factor.
The Selector in the Bar Chart area changes the data viewed between Consumption, Demand and Power Factor. The data displayed in both the bar chart, and heatmap will change to display the selected data.
The Selector in the Bar Chart area changes the data viewed between Consumption, Demand and Power Factor. The data displayed in both the bar chart, and heatmap will change to display the selected data.

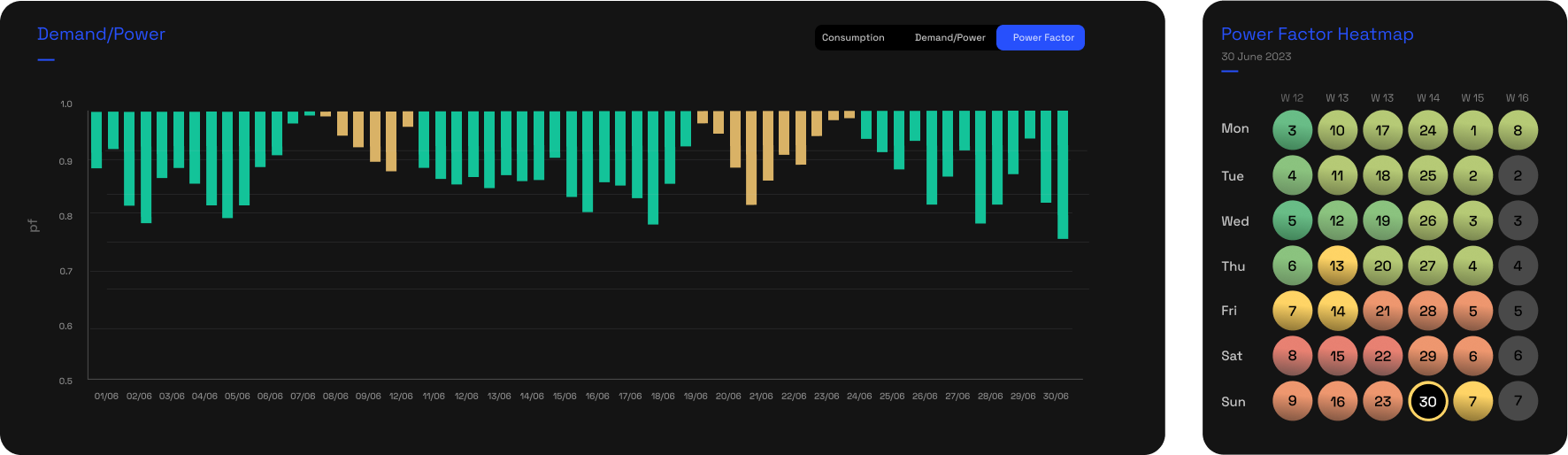

Bar Chart
The bar chart displays Power Factor, in 30 minute intervals.
Hovering your cursor over any of the bars will display:
- Date and Time
- Power Factor
Power Factor Heatmap
The Power Factor heatmap displays a daily view over up to a 6 week period. A set scale is used to indicate a range from good to bad Power Factor.
Darkest green indicates days where the Power Factor was good.
Darkest Red indicates days where the Power Factor was bad.
The Power Factor heatmap displays a daily view over up to a 6 week period. A set scale is used to indicate a range from good to bad Power Factor.
Darkest green indicates days where the Power Factor was good.
Darkest Red indicates days where the Power Factor was bad.
Hovering your cursor over any of the days in the heatmap will display the following data for the hovered day. :
- Date
- Consumption in kWh
- Peak Demand in kVA
- Power Factor at Peak Demand
The Heatmap also functions as a date selector. Clicking any of the
heatmap days will reload the page, displaying thew data for that day.
