Consumption Chart & Heatmap

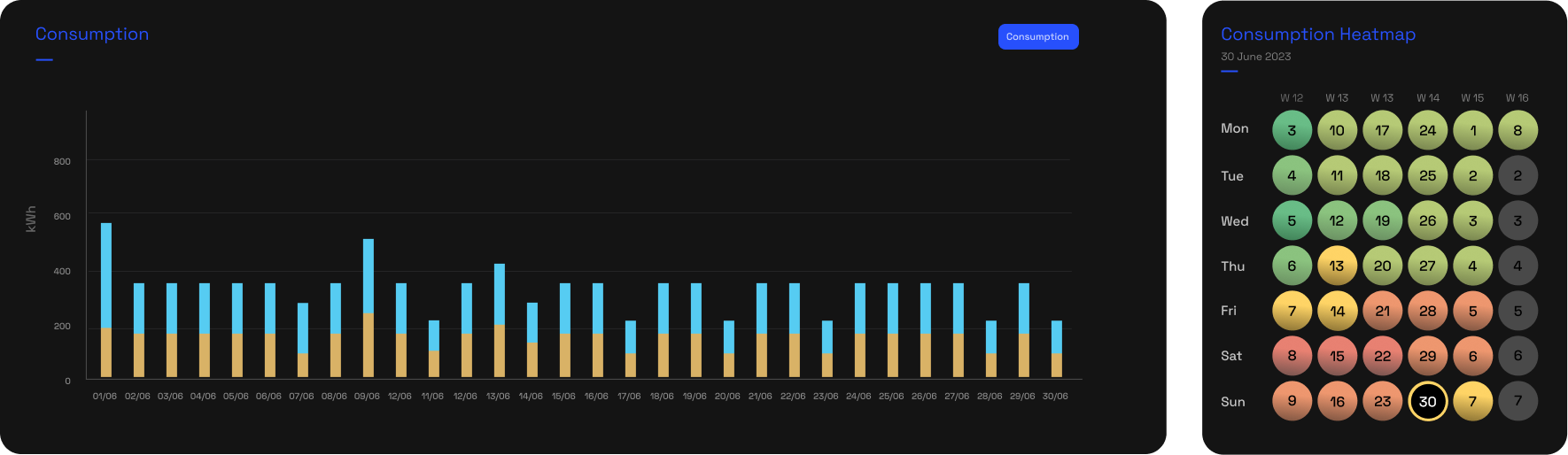

The Consumption Bar Chart and Consumption Heatmap are 2 separate graphic elements, that work together to provide a insightful view on your Consumption (kl/m3).
Bar Chart
The bar chart displays consumption in (kl/m3), in 30 minute intervals.
If you have multiple sub points, the chart will show the total consumption of the selected point, split into the sub meters that are 1 level down from the selected point. This is done through stacking of the bars in the chart.
If you have multiple sub points, the chart will show the total consumption of the selected point, split into the sub meters that are 1 level down from the selected point. This is done through stacking of the bars in the chart.
Hovering your cursor over any of the bars will display:
- Date and Time
- Total Consumption in (kl/m3)
- Sub points Consumption in (kl/m3)
Consumption Heatmap
The Consumption heatmap displays a daily view over up to a 6 week period. The lowest and highest total daily consumption over the period is used to create a colour scale. This allows us to visually represent daily consumption fluctuations.
Darkest green indicates the lowest consumption days.
Darkest Red indicates the highest consumption days.
The Consumption heatmap displays a daily view over up to a 6 week period. The lowest and highest total daily consumption over the period is used to create a colour scale. This allows us to visually represent daily consumption fluctuations.
Darkest green indicates the lowest consumption days.
Darkest Red indicates the highest consumption days.
Hovering your cursor over any of the days in the heatmap will display the following data for the hovered day. :
- Date
- Consumption in (kl/m3)
The Heatmap also functions as a date selector. Clicking any of the
heatmap days will reload the page, displaying thew data for that day.
